Bronte® Series

Named by ProductReview as the best split system three years in a row, the Bronte® split system incorporates advanced fan blade technology to efficiently deliver an industry leading, long reach airflow of 18m+ making it perfect for larger spaces.

It also incorporates 3D Auto Mode, various timers and ‘Clean Air Technology’ which helps to improve indoor air quality by capturing and neutralising fine smoke particles, allergens, odours, bacteria and viruses.


POWER: Single Phase & Three Phase  | AVAILABLE IN: Reverse Cycle & Cool Only

CAPACITIES: 6.3kW | 7.1kW | 8.0kW | 9.5kW | 10.0kW



Key features

  • Jet Air Technology delivering industry leading long reach airflow
  • Clean Air Technology to capture and neutralise allergens, odours, bacteria & viruses
  • Wide range of convenient timer and scheduling functions
  • ProductReview's best split system three years running
  • Optional Wi-Fi control with Wi-Fi adaptor
Australia's Best Split System Air-Conditioner
The Bronte® series has been named by ProductReview, Australia’s No.1 and most comprehensive consumer opinion site, as the best split system air-conditioner in their 2024 awards. This is the third year in a row Bronte has won this award.
producreview best split system air-conditioner 2021 - 2024 awards bronte


SELECT A CAPACITY TO VIEW SPECIFICATIONS

Single Phase
THREE PHASE
Specifications
SELECTED MODEL: SRK20ZSA-W / DXK06ZSA-W
Capacity
COOLING:
HEATING:
Dimensions (HxWxD)
INDOOR:
OUTDOOR:
Get Up To $500 Cash Bonus
Purchase an eligible air-conditioner between 1 May and 31 August 2024 and get up to $500 cash bonus! We'll also donate $25 for every approved claim to Heartkids Australia! *T's and C's apply.
winter 2024 cash bonus. get up to $500 cashback. heartkids australia
Australia's Most Awarded Air-Conditioner Brand
Recognised by CHOICE® and Finder as Australia's best brand of air-conditioners and Canstar Blue as having the most satisfied customers, Mitsubishi Heavy Industries is proud to be the most independently awarded air-conditioner brand in Australia.
choice best air-conditioner brand, finder best air-conditoner brand and finder best air-condtioner brand logos
Energy Saving
Fuzzy Auto Mode

Using fuzzy logic algorithms, the unit determines the operating mode and temperature settings automatically and adjusts the inverter frequency.

Economy Mode

Unit operates at slightly reduced capacity to reduce power consumption while maintaining a comfortable room temperature.

Comfort & Convenience
Dry Operation

Reduces humidity by removing moisture from the air without affecting indoor temperature.

Hi Power Operation

Provides 15mins of boosted power to quickly heat or cool your home before returning to normal operation. Perfect for when you first turn on it the unit.

Silent Operation

Set periods of time where the unit will operate with reduced noise levels, perfect for night time and an uninterrupted sleep.

Night Setback

Designed for the colder seasons, this function ensures the room temperature is kept at around 10˚C, even while unoccupied.

Weekly Timer

Set your unit to turn on and off at specific times for each day of the week to suit your needs.

Sleep Timer

Set a pre-determined amount of time between 30 and 240 mins that your unit will operate for before switching off.

On/Off Timer

Set your unit to turn on and off once, at specific times, within a 24 hour period.

Preset Operation

The desired preset operation mode can be enabled with a single touch of a button.

Child Lock

Lock the remote control to prevent little ones from changing functions and other settings. Useful for families with curious young children.

Air Flow
Jet Air Technology

Advanced fan blade technology, used in the development of jet engines, efficiently delivers powerful yet quiet and evenly distributed airflow.

3D Auto Airflow

One touch program that operates three independent motors which effectively distributes an even airflow across the entire room.

Auto Louvre Mode

Depending on whether the unit is in heating or cooling mode this will automatically set the louvre at the optimum angle for even air distribution.

Memory Louvre

Set the louvre at the desired angle. Unit will automatically return the louvres to this position on every subsequent start up.

Up/Down Louvre Swing

The horizontal louvres will automatically swing up and down for even air distribution.

Right/Left Louvre Swing

The vertical louvres will automatically swing left and right for even air distribution.

Clean Air Technology
Allergen Clear Filter

Captures airborne allergens such as hair, pollen and dust particles before neutralising them and any bacteria using specially formulated enzymes.

Allergen Clear Operation

Multi-stage operation that activates enzymes in the specially designed filter, neutralising and suppressing airborne allergens such as pollen, dust and hair.

Self-Clean Operation

Dries the indoor unit's filter and other internal components, preventing the growth of mould.

Photocatalytic Deodorizing Filter

Easy to clean filter that catches airborne allergens and particles before neutralising odour causing bacteria within them.

Maintenance
Microcomputer-Operated Defrosting

Automatically activated during low ambient temperatures to prevent the frosting of the outdoor heat exchanger.

Self-Diagnostics

In the unlikely event of a fault the internal microcomputer automatically runs a diagnostic of the system. This enables a service agent to quickly isolate and repair any issues.

Auto Restart Function

If there is a temporary loss of power, when power is restored, the unit will automatically restart in the same operating mode it was in.

SELECT CONTROLLER TYPE FOR DETAILS:
Wireless Remote
Wi-Fi
High Power Mode
Provides 15mins of boosted power allowing you to quickly heat or cool your home.
Silent Operation
Set periods of time where the unit will operate with even further reduced noise levels.
Allergen Clear Operation
Multi-stage operation that activates filter enzymes, neutralising captured allergen.
On/Off Timer
Set your unit to turn on and off once within a 24 hour period.
Weekly Timer
Set your unit to turn on and off up to 4 times each day of the week.
3D Auto Mode
Activates three independent motors which effectively distributes a more even airflow.
Self Clean Operation
Dries the indoor units internal components, preventing mould and odours.
Dry Operation
Reduces humidity by removing moisture from the air without affecting indoor temperature.

For more information on the functions available and how to access them on your remote control, please refer to your unit’s user manual. For all features & functions, please view our split systems brochure here.

Download Manual

Control your system using your smart device (iPhone, iPad) or internet browser via to easy to use AC Cloud Control app.

  • Control the set temperature, operation mode and fan speed.
  • Control your system via your Google or Amazon smart speaker device.
  • Control your system using Voice Command.
  • Set up ‘favourite’ scenes and activate them with a single tap.
  • Set your system to respond to the weather, you arriving home, calendar events + more**.
  • Receive instant notifications and email updates and create usage logs**.



*Wi-Fi control requires MH-AC-WIFI-1 Wi-Fi adaptor (sold separately)
**In conjunction with IFTTT and other apps (must be downloaded separately).
Note: Some functions for some air conditioners may not be available via AC Cloud Control app. On/Off timer, weekly timer and sleep timer are disabled if Wi-Fi accessory connected. Similar functions can be set via the AC Cloud application.

Download Manual
Bronte® Series
Split Systems Brochure
Bronte® Series
Split System Room Sizing Chart
Bronte® Series

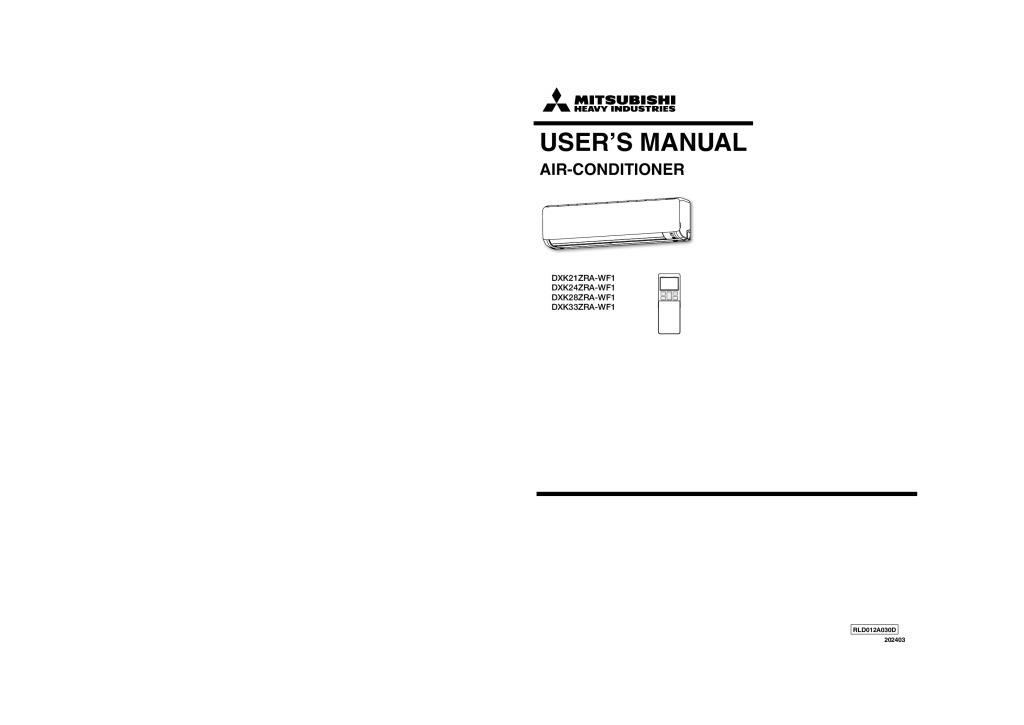

User Manual BRONTE series (DXK21ZRA-W, DXK24ZRA-W, DXK28ZRA-W, DXK33ZRA-W)
Bronte® Series
User Manual BRONTE Series (SRK63-100ZRA-W)

What Makes Mitsubishi Heavy Industries The Experts in Air?

Most Independently Awarded
Air-conditioner Brand

With awards from CHOICE®, Finder, Canstar Blue and ProductReview, we're proud to be the most independently awarded air-conditioner brand in Australia.

Reliability

Designed to perform in the most demanding environments on earth, we engineer our products to endure its harshest conditions, from scorching summers, ice-cold winters and everything in-between.

Superior Technology

With world-class engineering and product innovation in our DNA, we push the boundaries to develop technology that delivers optimal experience. You can depend on us to deliver comfort in your home year after year.

Commitment to Our Customers

Standing behind the quality of our products is our commitment to our customers and after sales service guarantees with comprehensive warranties providing you peace of mind.
5 Years Parts and Labour Warranty
Standing behind our products and highlighting our commitment to our customers, all our air-conditioning systems are backed by a full 5 year parts and labour warranty.
TECHNICAL SPECIFICATIONS
ABCDEFGHIJ
1
IndoorSRK63ZRA-W / DXK21ZRA-WSRK71ZRA-W / DXK24ZRA-WSRK80ZRA-W / DXK28ZRA-WSRK95ZRA-W / DXK33ZRA-WSRK100ZR-W
2
OutdoorSRC63ZRA-W / DXC21ZRA-WSRC71ZRA-W / DXC24ZRA-WSRC80ZRA-W / DXC28ZRA-WSRC95ZRA-W / DXC33ZRA-WFDCA100VNA-W
3
Power source (Outdoor Unit)1 Phase 240V 50Hz
4
*Operation
data
Nominal Capacity (Range)Cooling T1kW6.3 (1.2~7.4)7.1 (2.3~8.3)8.0 (2.3~9.5)9.5 (2.5~10.6)10.0 (4.0~11.2)
5
Heating H17.1 (0.8 ~9.2)8.0 (2.0~10.9)9.0 (2.1~11.2)10.3 (3.2~11.9)11.2 (4.0 ~12.5)
6
Heating H278.18.29.67.7
7
Power consumptionCooling T1kW1.58 (0.2~2.5)1.84 (0.48~2.4)2.22 (0.48~3.1)2.56 (0.5-3.2)3.19
8
Heating H11.60 (0.16~2.8)2.02 (0.4~3.4)2.40 (0.40~3.40)2.64 (0.6-3.7)3.04
9
Maximum power consumptionkW2.93.653.653.86.4
10
Running currentCooling T1A6.77.89.410.814.3
11
Heating H16.78.610.211.113.6
12
Inrush current, maximum currentA6.7, 14.58.6, 17.010.2, 17.011.1, 17.55, 24
13
EERCooling T13.993.863.63.713.13
14
COPHeating H14.443.963.753.93.68
15
Sound power level
(JIS C9612)
OutdoordB(A)6465686969
16
Sound pressure level
(JIS C9612)
IndoordB(A)44-39-35-2543-40-36-2446-43-38-2548-45-40-2648-45-40-27
17
Outdoor5453565754
18
Energy label (GEMS 2019)HOTCooling43.53.53.53
19
Heating3.5333.52.5
20
AVERAGECooling3.53.5332.5
21
Heating32.52.52.51.5
22
COLDCooling3.53.53.53.53
23
Heating2.52221
24
External dimensions (HxWxD)Indoormm339x1197x262339x1197x262339x1197x262339x1197x262339x1197x262
25
Outdoor640x800(+71)x290750x880(+88)x340750x880(+88)x340845x970(+89)x370845x970x370
26
Net weightIndoorkg15.515.515.516.516.5
27
Outdoor45585870.577
28
AirflowIndoor (Cooling)l/s342-301-262-173342-310-270-174383-345-300-182408-355-293-173408-355-293-173
29
Indoor (Heating)392-317-275-218425-330-288-222450-363-315-234458-386-318-227458-386-318-227
30
Refrigerant (Type, amount, pre-charge length)Quantitykg(R32) 1.25(R32) 1.6(R32) 1.6(R32) 2.0(R32) 3.3
31
Pre charged to pipe lengthm1515151530
32
Installation dataRefrigerant pipingLiquid linemmØ6.35Ø6.35Ø6.35Ø9.52Ø9.52
33
Gas lineØ12.70Ø15.88Ø15.88Ø15.88Ø15.88
34
Connection methodFlare connection
35
Maximum pipe (one way) lengthm3050
36
Max vertical height diff. between O.U. and I.U.m20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )50 ( O.U. above I.U. ) /
15 ( O.U. below I.U. )
37
Standard accessoriesAllergen Clear & Photocatalytic Washable Deodorizing Filter
38
Optional partsInterface kit (SC-BIKN2-E) / Wi-Fi Kit
39
Demand response (AS4755)Yes
40
* Operation data has been gathered in accordance with AS/NZS 3823 standards.
