Avanti® Series

Named by ProductReview as the best split system of 2024, the Avanti® split system features a sleek and stylish design and incorporates a range of convenient features and functions. These include various timers and scheduling options as well as ‘Clean Air Technology’ which helps improve indoor air quality by capturing and neutralising fine smoke particles, allergens, odours, bacteria and viruses. The Avanti® is best suited to small and medium spaces.

Our new WF1 range provides the convenience of being able to control your Avanti® Air Conditioner from virtually anywhere, with built-in Wi-Fi, plus voice control compatibility via Google or Alexa device, and the NOVAShield™ PM2.5 filter for enhanced air quality.


POWER: Single Phase  | AVAILABLE IN: Reverse Cycle & Cool Only

CAPACITIES: 2.0kW | 2.5kW | 3.5kW | 5.0kW

Key features

  • Modern and stylish design
  • 3D Auto airflow for effective and even air distribution
  • Clean Air Technology to capture and neutralise allergens, odours, bacteria & viruses
  • Wide range of timer and scheduling functions
  • New WF1 range: Built-in Wi-Fi, NOVAShield™ PM2.5 Filter, and Voice Control Compatibility (via Google or Alexa device, sold separately)
Australia's Best Split System Air-Conditioner

The Avanti® series has been named by ProductReview, Australia’s No.1 and most comprehensive consumer opinion site, as the best split system air-conditioner in their 2024 awards.

producreview best split system air-conditioner 2024 awards avanti


SELECT A CAPACITY TO VIEW SPECIFICATIONS

Single Phase
Specifications
SELECTED MODEL: SRK20ZSA-W / DXK06ZSA-W
Capacity
COOLING:
HEATING:
Energy Labels
Hot
COOLING:
HEATING:
Average
COOLING:
HEATING:
Cold
COOLING:
HEATING:
Dimensions (HxWxD)
INDOOR:
OUTDOOR:
Energy Saving
Fuzzy Auto Mode

Using fuzzy logic algorithms, the unit determines the operating mode and temperature settings automatically and adjusts the inverter frequency.

Economy Mode

Unit operates at slightly reduced capacity to reduce power consumption while maintaining a comfortable room temperature.

Comfort & Convenience
Dry Operation

Reduces humidity by removing moisture from the air without affecting indoor temperature.

Silent Operation

Set periods of time where the unit will operate with reduced noise levels, perfect for night time and an uninterrupted sleep.

Night Setback

Designed for the colder seasons, this function ensures the room temperature is kept at around 10˚C, even while unoccupied.

Weekly Timer

Set your unit to turn on and off at specific times for each day of the week to suit your needs.

Sleep Timer

Set a pre-determined amount of time between 30 and 240 mins that your unit will operate for before switching off.

On/Off Timer

Set your unit to turn on and off once, at specific times, within a 24 hour period.

Comfort Start-up

When using the ON-TIMER function, the unit will switch on slightly earlier than the SET time, to ensure the optimum temperature is reached at the ON TIME.

Preset Operation

The desired preset operation mode can be enabled with a single touch of a button.

Child Lock

Lock the remote control to prevent little ones from changing functions and other settings. Useful for families with curious young children.

LED Brightness Adjustment

Adjust the brightness of the LED display on the indoor unit to minimise disturbance during evenings. Perfect for units installed in bedrooms.

Air Flow
Jet Air Technology

Advanced fan blade technology, used in the development of jet engines, efficiently delivers powerful yet quiet and evenly distributed airflow.

3D Auto Airflow

One touch program that operates three independent motors which effectively distributes an even airflow across the entire room.

Auto Louvre Mode

Depending on whether the unit is in heating or cooling mode this will automatically set the louvre at the optimum angle for even air distribution.

Memory Louvre

Set the louvre at the desired angle. Unit will automatically return the louvres to this position on every subsequent start up.

Up/Down Louvre Swing

The horizontal louvres will automatically swing up and down for even air distribution.

Right/Left Louvre Swing

The vertical louvres will automatically swing left and right for even air distribution.

Clean Air Technology
Allergen Clear Filter

Captures airborne allergens such as hair, pollen and dust particles before neutralising them and any bacteria using specially formulated enzymes.

Allergen Clear Operation

Multi-stage operation that activates enzymes in the specially designed filter, neutralising and suppressing airborne allergens such as pollen, dust and hair.

NOVAShield PM2.5 Filter (WF1 models)

Included in WF1 models, the NOVAShield™ PM2.5 Filter captures fine particulate matter (PM) such as smoke, dust, pollen and other pollutants as small as 2.5 microns.

Photocatalytic Deodorizing Filter (W models)

Included in standard W models, this easy-to-clean filter catches airborne allergens and particles before neutralising odour-causing bacteria within them.

Self-Clean Operation

Dries the indoor unit's filter and other internal components, preventing the growth of mould.

Removable Cover

Removable front cover allowing access for easy cleaning and maintenance.

Maintenance
Improved Serviceability

The fan unit (comprised of impeller and motor) is easily accessible from either the side or bottom of the unit and can be slid out for easy maintenance.

Microcomputer-Operated Defrosting

Automatically activated during low ambient temperatures to prevent the frosting of the outdoor heat exchanger.

SELECT CONTROLLER TYPE FOR DETAILS:
Wireless Remote - W Models
Built-in Wi-Fi (WF1 Range only)
Optional Wi-Fi (W Models)
High Power Mode
Provides 15mins of boosted power allowing you to quickly heat or cool your home.
LED Brightness Adjustment
Adjust the brightness of the LED display on the indoor unit.
Weekly Timer
Set your unit to turn on and off up to 4 times each day of the week.
3D Auto Mode
Activates three independent motors which effectively distributes a more even airflow.
On/Off Timer
Set your unit to turn on and off once within a 24 hour period.
Self Clean Operation
Dries the indoor units internal components, preventing mould and odours.
Dry Operation
Reduces humidity by removing moisture from the air without affecting indoor temperature.
Silent Operation
Set periods of time where the unit will operate with even further reduced noise levels.

For more information on the functions available and how to access them on your remote control, please refer to your unit’s user manual. For all features & functions, please view our split systems brochure here.

Download Manual

Together with the wireless remote control, WF1 models can be controlled remotely using Wi-Fi and the Smart M-AIR App.

  • Control your system using your smart device (iPhone or Android) via the Smart M-AIR App (Apple iPhone for iOS 12-17)
  • Control the set temperature, operation mode, change the fan speed and air flow direction as well as set weekly timers.
  • Control your system using Voice Commands via your Google or
    Amazon smart speaker device*.

    • Ex: “Ok Google, turn the bedroom air-conditioner off”
    • Ex: “Alexa, turn down the temperature in the living room”
  • Set Favourites with desired temperature, operation mode and more for ultimate comfort.
  • Receive automatic Shut-off reminder and high/low temperature alerts.
  • Monitor electricity usage and more.



Note: 1 x user account per smartphone with up to 4x individual user accounts per individual Wi-Fi device. Some functions for some air conditioners may not be available via Smart M-Air app.

*Amazon and Google devices sold separately

Download Manual

Control your system using your smart device (iPhone, iPad) or internet browser via to easy to use AC Cloud Control app*.

  • Control the set temperature, operation mode and fan speed.
  • Control your system via your Google or Amazon smart speaker device.
  • Control your system using Voice Command.
  • Set up ‘favourite’ scenes and activate them with a single tap.
  • Set your system to respond to the weather, you arriving home, calendar events + more**.
  • Receive instant notifications and email updates and create usage logs**.

*Wi-Fi control requires MH-AC-WIFI-1 Wi-Fi adaptor (sold separately)
**In conjunction with IFTTT and other apps (must be downloaded separately).
Note: some functions for some air conditioners may not be available via AC Cloud Control app. On/Off timer, weekly timer and sleep timer are disabled if Wi-Fi accessory connected. Similar functions can be set via the AC Cloud application.

Download Manual
Avanti® Series
Split Systems Brochure
Avanti® Series

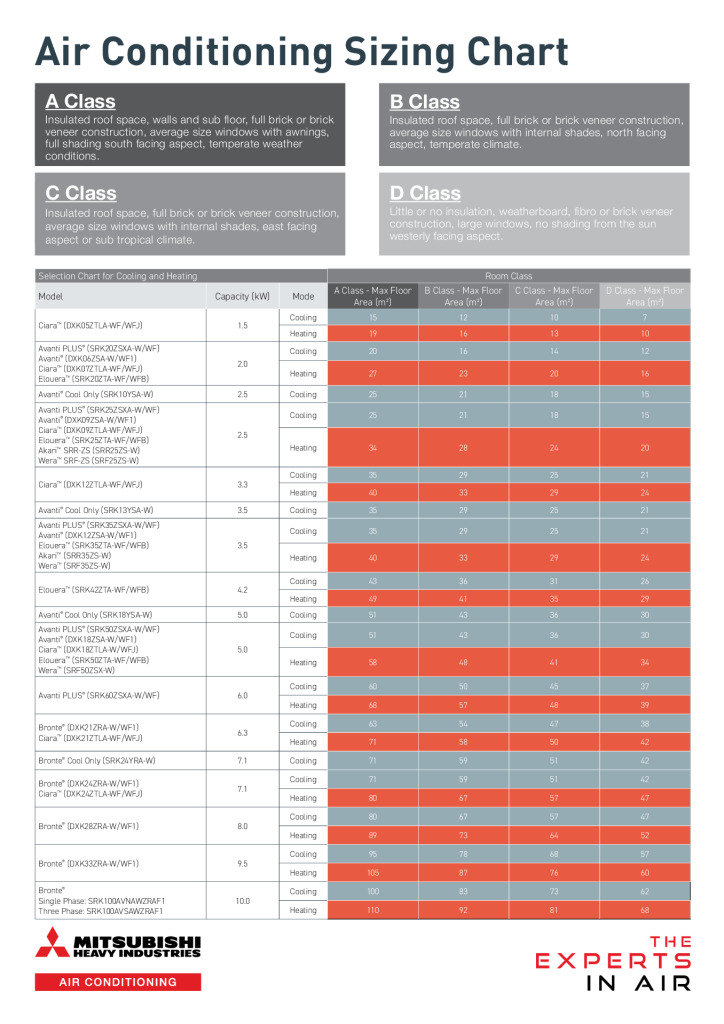

Split System Room Sizing Chart
Avanti® Series
User Manual AVANTI series (DXK06ZSA-W, DXK09ZSA-W, DXK12ZSA-W, DXK18ZSA-W)
Avanti® Series
User Manual AVANTI series (SRK20ZSA-W, SRK25ZSA-W, SRK35ZSA-W, SRK50ZSA-W)
Avanti® Series

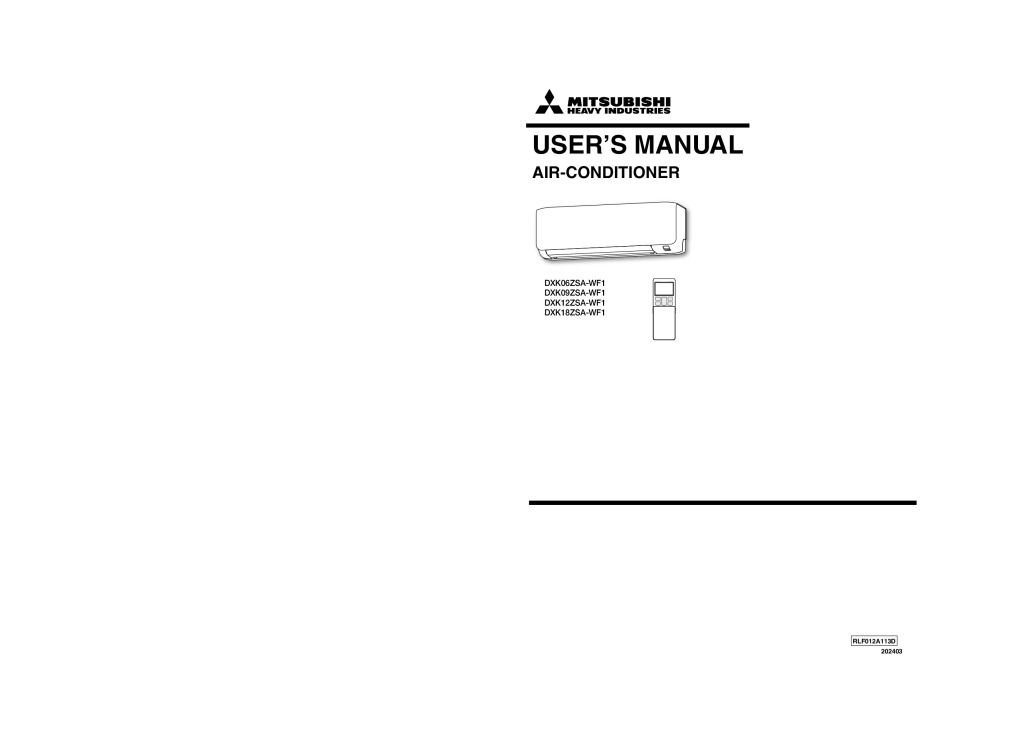

User Manual Avanti Series (DXK06ZSA-WF1 to DXK18ZSA-WF1)
Avanti® Series
Smart M Air Operation Manual
Avanti® Series
Smart M Air Quick Setup Guide
Avanti® Series

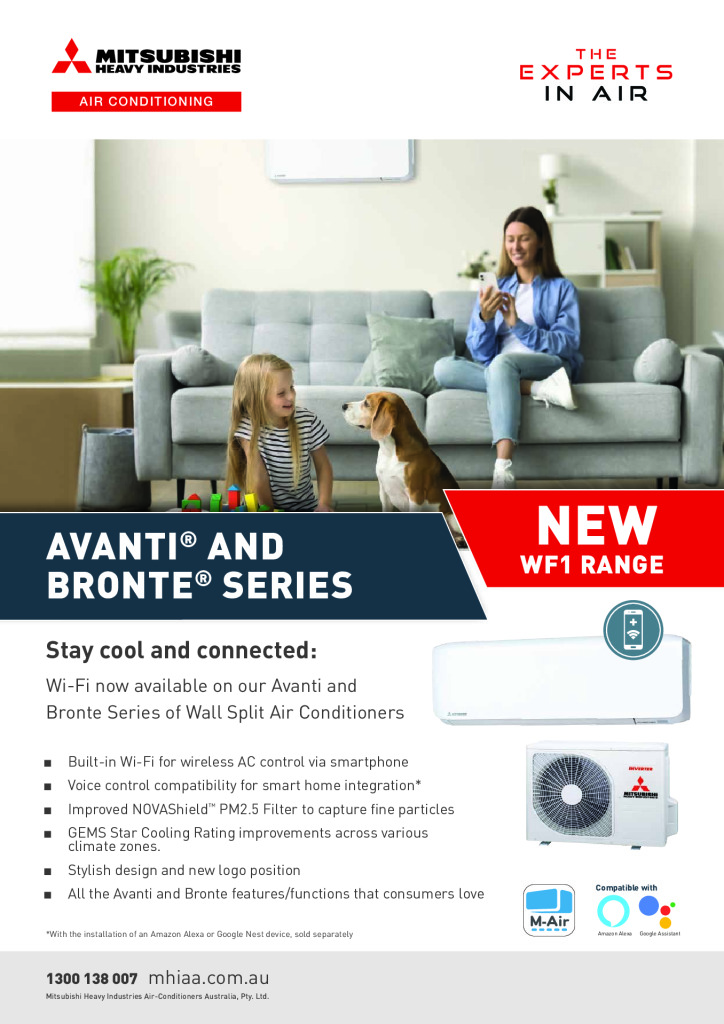

Avanti & Bronte Series WF1 Range Intro Flyer

New Avanti® WF1 Range

Our new WF1 Range of Avanti® Split Systems provides exciting enhancements to elevate your comfort experience. You can browse our products ending in codes ending in WF1, or simply consult your local trusted MHIAA installer to discover if this system is the perfect fit for you.
Built-In Wi-Fi
NOVAShield™ PM2.5 Filter
GEMS Cooling Star Rating improvements
Voice Control Compatibility
Built-In Wi-Fi: Connect you unit to your home network for effortless comfort at your fingertips.

New NOVAShield™ PM2.5 Filter: Captures fine particulate matter such as smoke, dust, pollen and other pollutants.

GEMS Cooling Star Rating Improvements: Optimise your energy efficiency with several GEMS star cooling rating improvements across select zones.

Voice Control Compatibility: Easily control your Avanti series® via your Google or Amazon smart home device (sold separately).

What Makes Mitsubishi Heavy Industries The Experts in Air?

Ultimate Customer Satisfaction

Backed by award-winning technology, effortless performance, and unparalleled product reliability, we are dedicated to ensuring your complete satisfaction at every touchpoint.

Reliability

Designed to perform in the most demanding environments on earth, we engineer our products to endure its harshest conditions, from scorching summers, ice-cold winters and everything in-between.

Superior Technology

With world-class engineering and product innovation in our DNA, we push the boundaries to develop technology that delivers optimal experience. You can depend on us to deliver comfort in your home year after year.

Commitment to Our Customers

Standing behind the quality of our products is our commitment to our customers and after sales service guarantees with comprehensive warranties providing you peace of mind.
5 Years Parts and Labour Warranty
Standing behind our products and highlighting our commitment to our customers, all our air-conditioning systems are backed by a full 5 year parts and labour warranty.

Request a Quote

Considering the award-winning Avanti® series? Leave some details below and we’ll get an installer in your area to get in touch!

FAQ

What is Hyper Inverter technology?
Hyper Inverter technology is highly efficient inverter technology. Inverter technology helps to maintain a room’s temperature through the continual adjustments of the cooling and heating outputs. The Inverter technology adjusts to changes in the room’s temperature by slowing down the output when the desired temperature is reached and slightly increasing it to maintain the temperature against any changes. Hyper Inverter completes this process in a highly efficient way.
What does the heating and cooling capacity (kW) mean?
The heating and cooling capacity of your AC is measured in kilowatts (kW). Kilowatts measure the amount of energy output that occurs during operation. AC units that have a larger kW capacity can heat or cool larger spaces.
What do the energy star ratings stand for?
The energy star ratings are a mandatory label that most single split AC systems must include. The star rating represents the energy efficiency of the AC system. The higher the number of stars on the energy labels the more efficient your system is.
What is R32 refrigerant and what impact does it have on my energy bills?
R32 refrigerant is the next generation refrigerant that has a lower Global Warming Potential and offers amazing energy efficiency benefits. The R32 refrigerant needs less energy to achieve the desired temperature as it requires less refrigerant volume to operate.  This will lower the amount of electricity usage your AC contributes to your energy bills.
How can I ensure that my air conditioner is properly maintained to operate efficiently all year around?
To ensure your air conditioner works all year round you should regularly check, or have a technician check, for any blockages or obstructions in the drain pipes that run from your outdoor unit, clean the filters and ensure your air conditioner is regularly serviced.
What size air conditioner do I typically need to meet the cooling and heating needs for my home?
A number of factors impact the size of the AC unit for your home. Factors such as building material, shading, structure, orientation, floor coverings and what your AC is required for will all impact the sizing of your AC. For the best advice on your room sizing needs contact your local dealer.
Who can I speak to about selecting the right air conditioner for my home?
Our local MHI dealers can answer all your questions and help you select the right air conditioner for your home. To find your local dealer click here.
Where do I go to buy an MHI air conditioner?
Our air conditioners are available at a number of different retail or dealer outlets. To find your closest local stockist click here.
I want to replace my old air conditioner. Should my replacement be the same size?
Depending on the age of your old air conditioner it is not always guaranteed that your replacement will be the same size. Your local MHI dealer will be able to clarify the perfect capacity size for your AC needs.
What is the installation process if I’m building a new home?
When building new home installers can work with your builders to develop a time frame that will suit them both. We recommend contacting your local installer at the beginning of the project so that your builder and installer can meet your exact requirements. For more information on this process please contact your local MHI dealer directly.
How long will it take to install an MHI air conditioner?
Depending on the unit you purchase the installation time will vary. Most split system air conditioners can be installed within a few hours. For Ducted systems this process is longer as there is more work needed. For the complete installation times and availabilities please contact your local MHI dealer.
Where should I place my air conditioner in the room?
To select the best location in your house for your AC unit you will need to consider the shape and size of your room, the capacity of the unit and the piping length that connects the indoor and outdoor unit. Contact your local MHI dealer today and find the best place to install your air conditioner.
I am replacing the old air conditioner. Can the existing piping be used for my replacement system?
When replacing an old air conditioner we recommend that you replace all parts of your system. MHIAA cannot guarantee that when the new AC is installed the quality of the existing pipes will be sufficient or match the size required for your new system.
TECHNICAL SPECIFICATIONS
ABCDEFGHIJKLMNOPQ
1
Indoor
SRK20ZSA-W / DXK06ZSA-W
SRK25ZSA-W / DXK09ZSA-W
SRK35ZSA-W / DXK12ZSA-W
SRK50ZSA-W / DXK18ZSA-W
SRK20ZSA-WF1/ DXK06ZSA-WF1
SRK25ZSA-WF1/ DXK09ZSA-WF1
SRK35ZSA-WF1/ DXK12ZSA-WF1
SRK50ZSA-WF1 / DXK18ZSA-WF1SRK20ZSA-W / DXK06ZSA-W
SRK25ZSA-W / DXK09ZSA-W
SRK35ZSA-W / DXK12ZSA-W
SRK50ZSA-W / DXK18ZSA-W
2
Outdoor
SRC20ZSA-W / DXC06ZSA-W
SRC25ZSA-W / DXC09ZSA-W
SRC35ZSA-W / DXC12ZSA-W
SRC50ZSA-W / DXC18ZSA-W
SRC20ZSA-W / DXC06ZSA-WSRC25ZSA-W / DXC09ZSA-WSRC35ZSA-W / DXC12ZSA-WSRC50ZSA-W / DXC18ZSA-WSRC20ZSA-W / DXC06ZSA-W
SRC25ZSA-W / DXC09ZSA-W
SRC35ZSA-W / DXC12ZSA-W
SRC50ZSA-W / DXC18ZSA-W
3
Power source (Outdoor Unit)1 Phase 220 -240V 50Hz1 Phase 220 -240V 50Hz
4
*Operation
data
Nominal Capacity (Range)Cooling T1kW2.0 (0.9~3.0)2.5 (0.9~3.5)3.5 (0.9~4.4)5.0 (1.2~5.5)2.0 (0.9~3.0)2.5 (0.9~3.5)3.5 (0.9~4.4)5.0 (1.2~5.5)2.0 (0.9~3.0)2.5 (0.9~3.5)3.5 (0.9~4.4)5.0 (1.2~5.5)
5
Heating H12.7 (1.0 ~4.2)3.2 (0.9~5.2)3.7 (0.9~5.4)5.8 (1.2~6.6)2.7 (1.0 ~4.2)3.2 (0.9~5.2)3.7 (0.9~5.4)5.8 (1.2~6.6)2.7 (1.0 ~4.2)3.2 (0.9~5.2)3.7 (0.9~5.4)5.8 (1.2~6.6)
6
Heating H23.23.9545.23.23.9545.23.23.9545.2
7
Power consumptionCooling T1kW0.41 (0.18~0.81)0.51 (0.18~0.88)0.82 (0.18~1.27)1.39 (0.27-1.86)0.41 (0.18~0.81)0.51 (0.18~0.88)0.82 (0.18~1.27)1.39 (0.27-1.86)0.41 (0.18~0.81)0.51 (0.18~0.88)0.82 (0.18~1.27)1.39 (0.27-1.86)
8
Heating H10.56 (0.20~1.12)0.65 (0.21~1.43)0.81 (0.21~1.44)1.49 (0.26~1.97)0.56 (0.20~1.12)0.65 (0.21~1.43)0.81 (0.21~1.44)1.49 (0.26~1.97)0.56 (0.20~1.12)0.65 (0.21~1.43)0.81 (0.21~1.44)1.49 (0.26~1.97)
9
Maximum power consumptionkW1.651.651.652.681.651.651.652.681.651.651.652.68
10
Running currentCooling T1A2.12.53.75.92.12.53.75.92.12.53.75.9
11
Heating H12.733.76.32.733.76.32.733.76.3
12
Inrush current, maximum currentA2.8, 9.03.2, 9.03.9, 9.05.0, 14.52.8, 9.03.2, 9.03.9, 9.05.0, 14.52.8, 9.03.2, 9.03.9, 9.05.0, 14.5
13
EERCooling T14.884.94.273.64.884.94.273.64.884.94.273.6
14
COPHeating H14.824.924.573.894.824.924.573.894.824.924.573.89
15
Sound power level
(JIS C9612)
OutdoordB(A)565862615658626156586261
16
Sound pressure level
(JIS C9612)
IndoordB(A)35-27-22-1940-31-22-1943-34-27-1943-36-28-2235-27-22-1940-31-22-1943-34-27-1943-36-28-2235-27-22-1940-31-22-1943-34-27-1943-36-28-22
17
Outdoor444550492.0/2.87kW45504944455049
18
Energy label (GEMS 2019)HOTCooling4.54.543.5554.53.54.54.543.5
19
Heating3.53.53.53.53.53.53.53.53.53.53.53.5
20
AVERAGECooling43.53.53444343.53.53
21
Heating3.5332.53.5332.53.5332.5
22
COLDCooling43.53.534443.543.53.53
23
Heating332.52332.52332.52
24
External dimensions (HxWxD)Indoormm290x870x230290x870x230290x870x230290x870x230290x870x230290x870x230290x870x230290x870x230290x870x230290x870x230290x870x230290x870x230
25
Outdoor540x780(+62)x290540x780(+62)x290540x780(+62)x290640x800(+71)x290540x780(+62)x290540x780(+62)x290540x780(+62)x290640x800(+71)x290540x780(+62)x290540x780(+62)x290540x780(+62)x290640x800(+71)x290
26
Net weightIndoorkg9.51010109.51010109.5101010
27
Outdoor33363643.533363643.533363643.5
28
AirflowIndoor (Cooling)l/s165-127-93-83182-140-88-78205-152-117-78213-175-113-93165-127-93-83182-140-88-78205-152-117-78213-175-113-93165-127-93-83182-140-88-78205-152-117-78213-175-113-93
29
Indoor (Heating)190-142-108-93237-182-110-88250-193-117-88253-198-152-113190-142-108-93237-182-110-88250-193-117-88253-198-152-113190-142-108-93237-182-110-88250-193-117-88253-198-152-113
30
Refrigerant (Type, amount, pre-charge length)Quantitykg(R32) 0.58(R32) 0.78(R32) 0.78(R32) 1.05(R32) 0.58(R32) 0.75(R32) 0.75(R32) 1.05(R32) 0.58(R32) 0.75(R32) 0.75(R32) 1.05
31
Pre charged to pipe lengthm151515151515151515151515
32
Installation dataRefrigerant pipingLiquid linemmØ6.35Ø6.35Ø6.35Ø6.35Ø6.35Ø6.35Ø6.35Ø6.35Ø6.35Ø6.35Ø6.35Ø6.35
33
Gas lineØ9.52Ø9.52Ø9.52Ø12.7Ø9.52Ø9.52Ø9.52Ø12.7Ø9.52Ø9.52Ø9.52Ø12.7
34
Connection methodFlare connectionFlare connectionFlare connection
35
Maximum pipe (one way) lengthm202520252025
36
Max vertical height diff. between O.U. and I.U.m10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. )15 ( O.U. above I.U. ) /
15 ( O.U. below I.U. )
10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. )
15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. )
15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. )
37
Standard accessoriesAllergen Clear & Photocatalytic Washable Deodorizing FilterAllergen clear filter , NOVAShield Nano filter (PM2.5), Built-in Wi-FiAllergen Clear & Photocatalytic Washable Deodorizing Filter
38
Optional partsInterface kit (SC-BIKN2-E) / Wi-Fi KitInterface kit (SC-BIKN2-E)Interface kit (SC-BIKN2-E) / Wi-Fi Kit
39
Demand response (AS4755)YesYesYes
40
* Operation data has been gathered in accordance with AS/NZS 3823 standards.

Request a Quote

Leave some details and we'll get an installer to get in touch!
