With the ability to connect up to five indoor units to a single outdoor unit, the SCM-ZS-W series of multi-split systems offers a compact and versatile solution for cooling and heating multiple rooms. Thanks to improved component design, the SCM-ZS-W series boasts super quiet operation while also delivering high energy efferences. The ability to control each indoor unit independently offers even further energy savings while also providing complete control.

POWER: Single Phase | AVAILABLE IN: Reverse Cycle

CAPACITIES: 4.0kW | 4.5kW | 5.0kW | 6.0kW | 7.1kW | 8.0kW | 10.0kW

Key features

Connect up to 5 indoor units to 1 outdoor unit
Individual control over each room
Energy efficient solution for multiple rooms
Wide range of indoor units to suit any space
Super quiet operation

SELECT A CAPACITY TO VIEW SPECIFICATIONS

Single Phase

SELECTED MODEL: SRK20ZSA-W / DXK06ZSA-W

COMPATIBLE INDOOR UNITS
CONTROL OPTIONS
DOWNLOADS

Wall Mounted

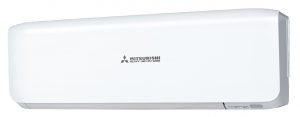

avanti indoor unit srk20-50zsa-w

Avanti:
SRK/DXK-ZSA-W

2.0 | 2.5 | 3.5kW

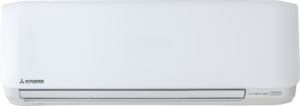

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5kW

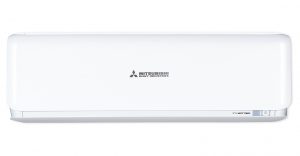

avanti plus indoor unit srk20-60zsa-w for multi split systems

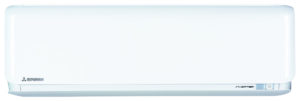

Avanti PLUS: SRK-ZSXA-W

2.0 | 2.5 | 3.5kW

Avanti PLUS: SRK-ZSXA-WF

2.0 | 2.5 | 3.5kW

Floor Mount Bulkhead Systems Ceiling Cassettes

Wall Mounted

avanti indoor unit srk20-50zsa-w

Avanti:
SRK/DXK-ZSA-W

2.0 | 2.5 | 3.5kW

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Avanti PLUS: SRK-ZSXA-W

2.0 | 2.5 | 3.5kW

Avanti PLUS: SRK-ZSXA-WF

2.0 | 2.5 | 3.5kW

Floor Standing Ceiling Cassettes Bulkhead Systems

Wall Mounted

avanti indoor unit srk20-50zsa-w

Avanti:
SRK/DXK-ZSA-W

2.0 | 2.5 | 3.5 | 5.0kW

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5 | 5.0kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Avanti PLUS: SRK-ZSXA-W

2.0 | 2.5 | 3.5 | 5.0kW

Avanti PLUS: SRK-ZSXA-WF

2.0 | 2.5 | 3.5 | 5.0kW

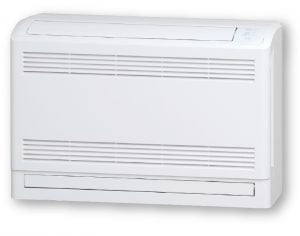

Floor Standing

WERA:
SRF25ZS-W

Capacity: 2.5kW

WERA:
SRF35ZS-W

Capacity: 3.5kW

Wera:
SRF50ZSX-W

Capacity: 5.0kW

Bulkhead Systems

AKARI:
SRR25ZS-W

Capacity: 2.5kW

AKARI:
SRR35ZS-W

Capacity: 3.5kW

AKARI:
SRR50ZS-W

Capacity: 5.0kW

Ceiling Cassettes Ducted

Wall Mounted

avanti indoor unit srk20-50zsa-w

Avanti:
SRK/DXK-ZSA-W

2.0 | 2.5 | 3.5 | 5.0kW

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5 | 5.0kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Avanti PLUS: SRK-ZSXA-W

2.0 | 2.5 | 3.5k | 5.0 | 6.0kW

Avanti PLUS: SRK-ZSXA-WF

2.0 | 2.5 | 3.5 | 5.0 | 6.0kW

Floor Standing

WERA:
SRF25ZS-W

Capacity: 2.5kW

WERA:
SRF35ZS-W

Capacity: 3.5kW

Wera:
SRF50ZSX-W

Capacity: 5.0kW

Bulkhead Systems

AKARI:
SRR25ZS-W

Capacity: 2.5kW

AKARI:
SRR35ZS-W

Capacity: 3.5kW

AKARI:
SRR50ZS-W

Capacity: 5.0kW

AKARI:
SRR60ZS-W

Capacity: 6.0kW

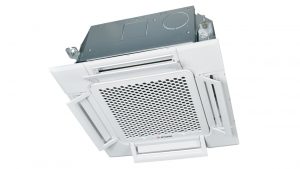

Ceiling Cassettes

FDTC25VH1

Capacity: 2.5kW

FDTC35VH1

Capacity: 3.5kW

FDTC50VH

Capacity: 5.0kW

FDTC60VH

Capacity: 6.0kW

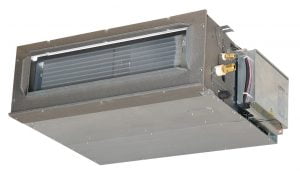

Ducted

Wall Mounted

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5kW

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5 | 5.0kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Avanti PLUS: SRK-ZSXA-W

2.0 | 2.5 | 3.5k | 5.0 | 6.0kW

Avanti PLUS: SRK-ZSXA-WF

2.0 | 2.5 | 3.5 | 5.0 | 6.0kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Bronte: SRK/DXK-ZRA-W

7.1kW

Bronte: DXK-ZRA-WF1

7.1kW

Floor Standing

WERA:
SRF25ZS-W

Capacity: 2.5kW

WERA:
SRF35ZS-W

Capacity: 3.5kW

Wera:
SRF50ZSX-W

Capacity: 5.0kW

Bulkhead Systems

AKARI:
SRR25ZS-W

Capacity: 2.5kW

AKARI:
SRR35ZS-W

Capacity: 3.5kW

AKARI:
SRR50ZS-W

Capacity: 5.0kW

AKARI:
SRR60ZS-W

Capacity: 6.0kW

Ceiling Cassettes

FDTC25VH1

Capacity: 2.5kW

FDTC35VH1

Capacity: 3.5kW

FDTC50VH

Capacity: 5.0kW

FDTC60VH

Capacity: 6.0kW

Ducted

Wall Mounted

avanti indoor unit srk20-50zsa-w

Avanti:
SRK/DXK-ZSA-W

2.0 | 2.5 | 3.5 | 5.0kW

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Avanti PLUS: SRK-ZSXA-W

2.0 | 2.5 | 3.5k | 5.0 | 6.0kW

Avanti PLUS: SRK-ZSXA-WF

2.0 | 2.5 | 3.5 | 5.0 | 6.0kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Bronte: SRK/DXK-ZRA-W

7.1kW

Bronte: DXK-ZRA-WF1

7.1kW

Floor Standing

Wera:
SRF25ZSA-W

Capacity: 2.5kW

WERA:
SRF35ZS-W

Capacity: 3.5kW

Wera:
SRF50ZSX-W

Capacity: 5.0kW

Bulkhead Systems

AKARI:
SRR25ZS-W

Capacity: 2.5kW

AKARI:
SRR35ZS-W

Capacity: 3.5kW

AKARI:
SRR50ZS-W

Capacity: 5.0kW

AKARI:
SRR60ZS-W

Capacity: 6.0kW

Ceiling Cassettes

FDTC25VH1

Capacity: 2.5kW

FDTC35VH1

Capacity: 3.5kW

FDTC50VH

Capacity: 5.0kW

FDTC60VH

Capacity: 6.0kW

Ducted

Wall Mounted

avanti indoor unit srk20-50zsa-w

Avanti:
SRK/DXK-ZSA-W

2.0 | 2.5 | 3.5 | 5.0kW

Avanti:
DXK-ZSA-WF1

2.0 | 2.5 | 3.5 | 5.0kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Avanti PLUS: SRK-ZSXA-W

2.0 | 2.5 | 3.5k | 5.0 | 6.0kW

Avanti PLUS: SRK-ZSXA-WF

2.0 | 2.5 | 3.5 | 5.0 | 6.0kW

avanti plus indoor unit srk20-60zsa-w for multi split systems

Bronte: SRK/DXK-ZRA-W

7.1kW | 8.0kW

Capacity: 8.0kW

Bronte: DXK-ZRA-WF1

7.1 | 8.0kW

Floor Standing

Wera:
SRF25ZSA-W

Capacity: 2.5kW

WERA:
SRF35ZS-W

Capacity: 3.5kW

Wera:
SRF50ZSX-W

Capacity: 5.0kW

Bulkhead Systems

AKARI:
SRR25ZS-W

Capacity: 2.5kW

AKARI:
SRR35ZS-W

Capacity: 3.5kW

AKARI:
SRR50ZS-W

Capacity: 5.0kW

AKARI:
SRR60ZS-W

Capacity: 6.0kW

Ceiling Cassettes

FDTC25VH1

Capacity: 2.5kW

FDTC35VH1

Capacity: 3.5kW

FDTC50VH

Capacity: 5.0kW

FDTC60VH

Capacity: 6.0kW

Ducted

SELECT CONTROLLER TYPE FOR DETAILS:

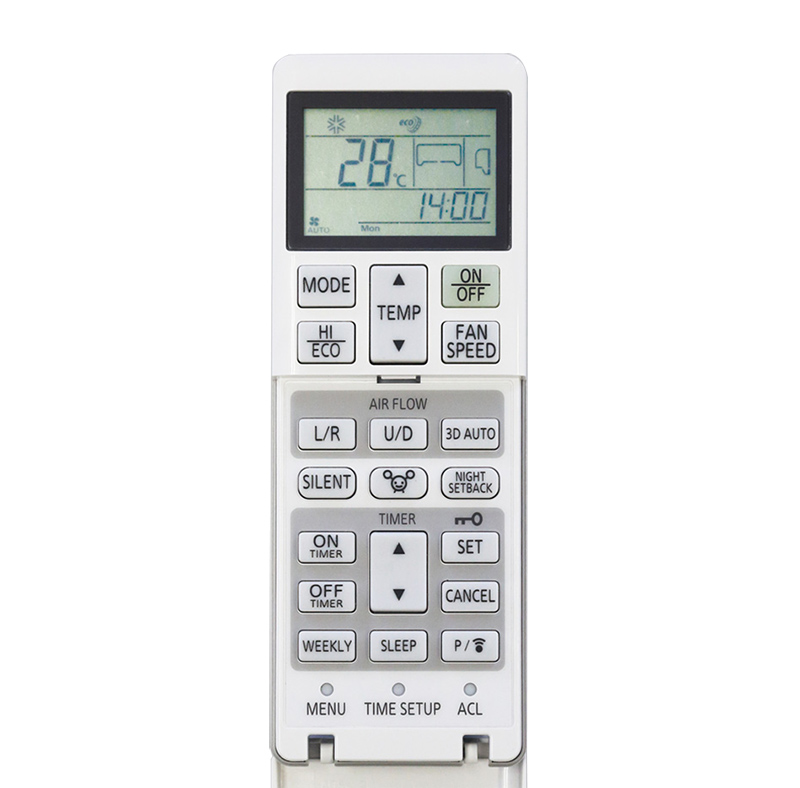

Wireless Remote

Wi-Fi

Built-in Wi-Fi (Avanti PLUS® WF Range only)

Economy Mode

Reduces power consumption while maintaining a comfortable room temperature.

Sleep Timer

Set a pre-determined amount of time that your unit will operate for before switching off.

High Power Mode

Provides 15mins of boosted power allowing you to quickly heat or cool your home.

Dry Operation

Reduces humidity by removing moisture from the air without affecting indoor temperature.

Silent Operation

Set periods of time where the unit will operate with even further reduced noise levels.

On/Off Timer

Set your unit to turn on and off once within a 24 hour period.

Weekly Timer

Set your unit to turn on and off up to 4 times each day of the week.

LED Brightness Adjustment

Adjust the brightness of the LED display on the indoor unit.

Controllers and their functions vary between indoor units connected. For more information on the functions available and how to access them on your remote control, please refer to your unit’s user manual. For all control options, features & functions, please view our multi-split systems brochure under downloads section.

Download Manual

Control your system using your smart device (iPhone, iPad) or internet browser via to easy to use AC Cloud Control app*.

Control the set temperature, operation mode and fan speed.
Control your system via your Google or Amazon smart speaker device.
Control your system using Voice Command.
Set up ‘favourite’ scenes and activate them with a single tap.
Set your system to respond to the weather, you arriving home, calendar events + more**.
Receive instant notifications and email updates and create usage logs**.

*Wi-Fi control requires MH-AC-WIFI-1 Wi-Fi adaptor (sold separately)
**In conjunction with IFTTT and other apps (must be downloaded separately).
Note: Some functions for some air conditioners may not be available via AC Cloud Control app. On/Off timer, weekly timer and sleep timer are disabled if Wi-Fi accessory connected. Similar functions can be set via the AC Cloud application.

Download Manual

Together with the wireless remote control, WF models can be controlled remotely using Wi-Fi and the Smart M-AIR App.

Control your system using your smart device (iPhone or Android) via the Smart M-AIR App (Apple iPhone for iOS 12-17)
Control the set temperature, operation mode, change the fan speed and air flow direction as well as set weekly timers.
Control your system using Voice Commands via your Google or
Amazon smart speaker device*.
- Ex: “Ok Google, turn the bedroom air-conditioner off”
- Ex: “Alexa, turn down the temperature in the living room”
Set Favourites with desired temperature, operation mode and more for ultimate comfort.
Receive automatic Shut-off reminder and high/low temperature alerts.
Monitor electricity usage and more.

Note: 1 x user account per smartphone with up to 4x individual user accounts per individual Wi-Fi device. Some functions for some air conditioners may not be available via Smart M-Air app.

*Amazon and Google devices sold separately

SCM-ZS-W series

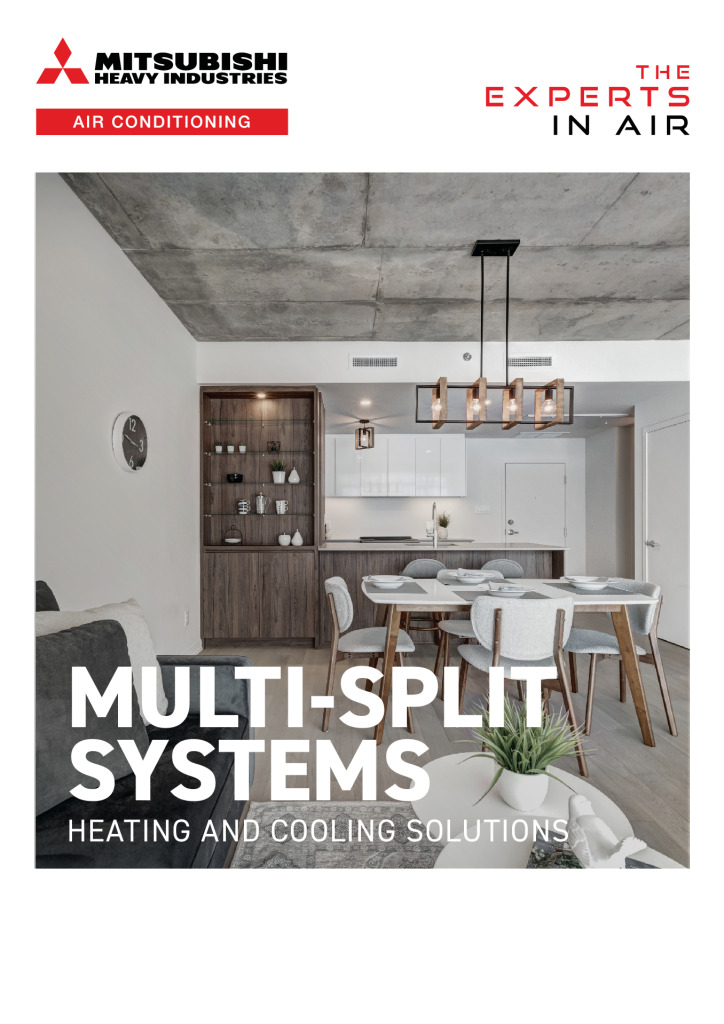

Multi-Split System Brochure

SCM-ZS-W series

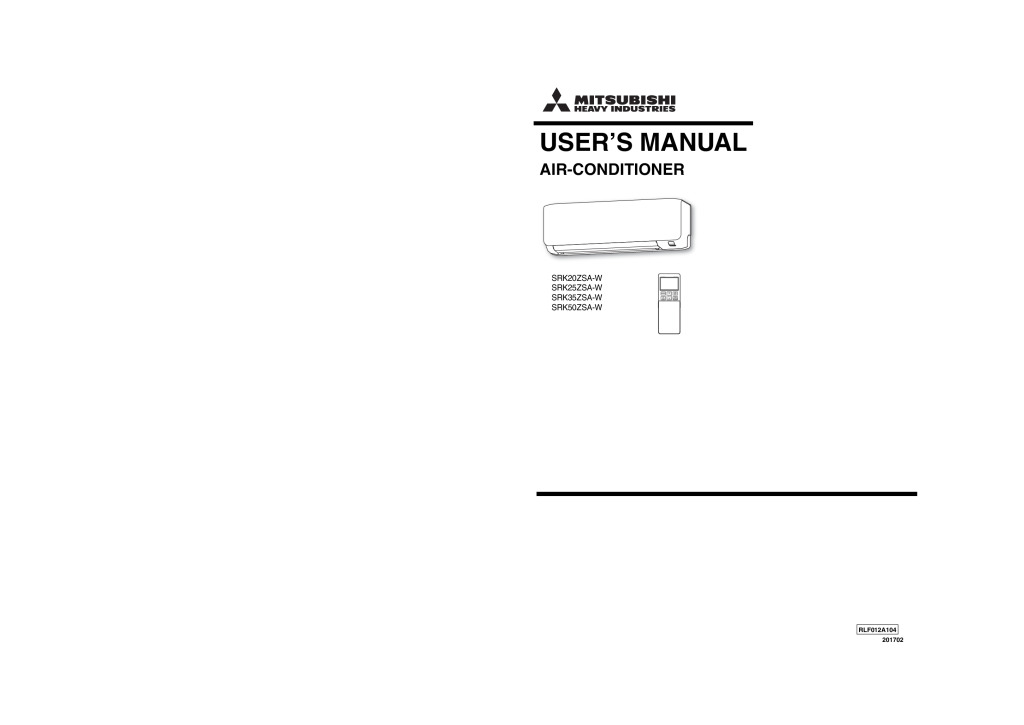

User Manual AVANTI series (SRK20ZSA-W, SRK25ZSA-W, SRK35ZSA-W, SRK50ZSA-W)

SCM-ZS-W series

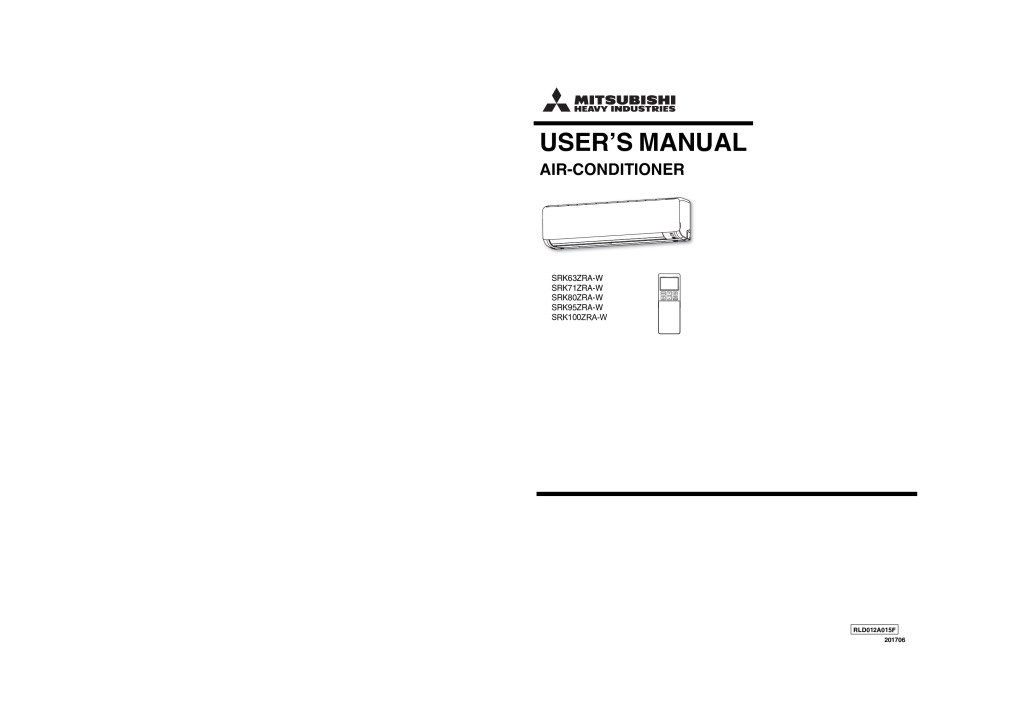

User Manual BRONTE Series (SRK63-100ZRA-W)

SCM-ZS-W series

User Manual Akari Series (SRR25ZS-W, SRR35ZS-W, SRR50ZS-W, SRR60ZS-W)

SCM-ZS-W series

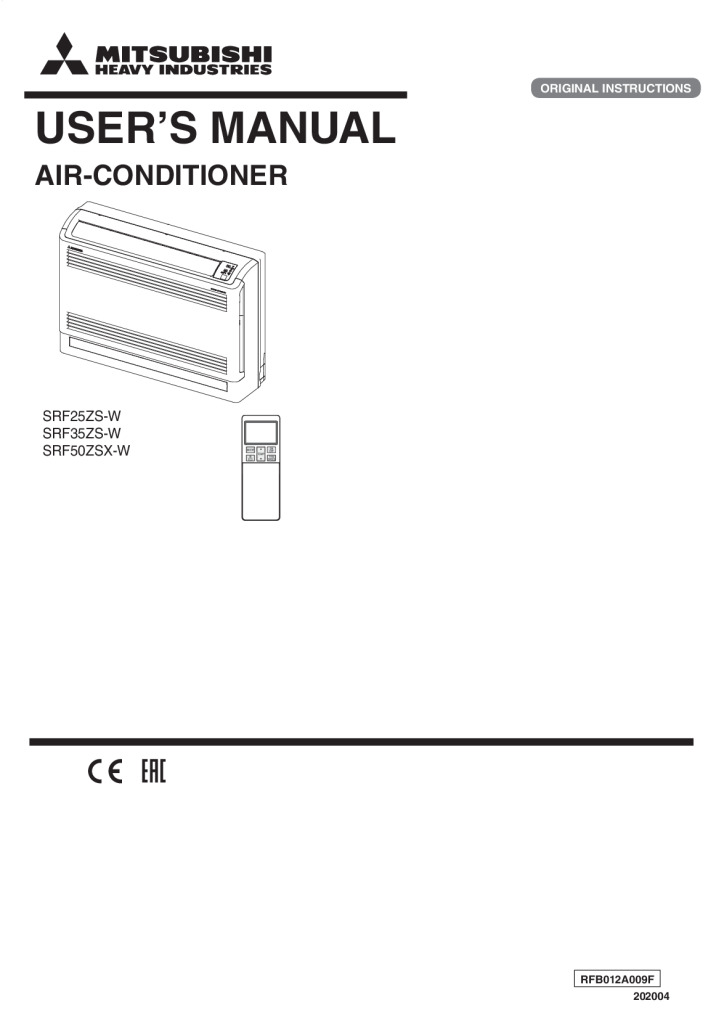

User Manual Wera Series (SRF25ZS-W, SRF35ZS-W, SRF50ZSX-W)

Ultimate Customer Satisfaction

Backed by award-winning technology, effortless performance, and unparalleled product reliability, we are dedicated to ensuring your complete satisfaction at every touchpoint.

Reliability

Designed to perform in the most demanding environments on earth, we engineer our products to endure its harshest conditions, from scorching summers, ice-cold winters and everything in-between.

Superior Technology

With world-class engineering and product innovation in our DNA, we push the boundaries to develop technology that delivers optimal experience. You can depend on us to deliver comfort in your home year after year.

Commitment to Our Customers

Standing behind the quality of our products is our commitment to our customers and after sales service guarantees with comprehensive warranties providing you peace of mind.

5 Years Parts and Labour Warranty

Standing behind our products and highlighting our commitment to our customers, all our air-conditioning systems are backed by a full 5 year parts and labour warranty.

Considering the SCM-ZS-W series? Leave some details below and we’ll get an installer in your area to get in touch!

FAQ

What does the heating and cooling capacity (kW) mean?

The heating and cooling capacity of your AC is measured in kilowatts (kW). Kilowatts measure the amount of energy output that occurs during operation. AC units that have a larger kW capacity can heat or cool larger spaces.

What does reverse cycle mean? What is R32 refrigerant and what impact does it have on my energy bills? How can I ensure that my air conditioner is properly maintained to operate efficiently all year around? What is the difference between Single and Multi Split systems and which do I buy?

A Single Split system air conditioner consists of one indoor unit connected to one outdoor unit and can only effectively heat or cool one room. A Multi Split system can connect multiple indoor units to one outdoor unit and can be used to heat or cool multiple rooms. To determine which one you should buy contact your local dealer who will help you decide which option best meets your needs.

For my family house, what type of an air conditioner should I buy?

When choosing an air conditioner you need to consider a number of different elements including, the size and shape of your room, the orientation of your house, the number of windows and the direction they are facing, as well as the style of your house. All these factors can impact the type and capacity air conditioner you should purchase. Get in contact with your local dealer today who will help you determine the best system that meets your air conditioning needs.

What size air conditioner do I typically need to meet the cooling and heating needs for my home? Who can I speak to about selecting the right air conditioner for my home? Where do I go to buy an MHI air conditioner? I want to replace my old air conditioner. Should my replacement be the same size? Where should I place my air conditioner in the room? How long will it take to install an MHI air conditioner? What is the installation process if I’m building a new home? Why is it important to hire a licensed installer and what type of license do they need in Australia?

The installation process for air conditioners involves both electrical and refrigeration work, which is why it is important to have a licensed installer. In Australia, only a registered ARCTICK (Australian Refrigeration Council) Installer and an A-grade electrician should be used. Your 5 year parts and labour warranty will be voided if your system is installed by an unlicensed installer.

I am replacing the old air conditioner. Can the existing piping be used for my replacement system?

TECHNICAL SPECIFICATIONS

	A	B	C	D	E	F	G	H	I	J	K	L
1	Outdoor					SCM40ZS-W	SCM45ZS-W	SCM50ZS-W	SCM60ZS-W	SCM71ZS-W	SCM80ZS-W	SCM100ZS-W
2	Power source (Outdoor)					1 Phase 240V 50Hz
3	*Operation data	Nominal Capacity (Range)		Cooling T1	kW	4.0 (1.5~5.9)	4.5(1.5~6.4)	5.0 (1.7~7.1)	6.0(1.7~7.5)	7.1 (1.8~8.8)	8.0 (1.8~9.2)	10.0 (1.7~11.5)
4		Nominal Capacity (Range)		Heating H1	kW	4.5 (1.0~6.3)	5.3(1.0~6.5)	6.0 (1.0~7.5)	6.8 (1.0~7.8)	8.6 (1.1~9.4)	9.3 (1.1~9.8)	10.5 (0.9~11.5)
5		Power consumption		Cooling T1	kW	0.8	0.96	1.02	1.32	1.42	1.7	2.7
6		Power consumption		Heating H1	kW	0.83	1.06	1.16	1.4	1.75	1.95	2.38
7		Running current		Cooling T1	A	3.4	4.1	4.3	5.6	6	7.2	11.4
8		Running current		Heating H1	A	3.5	4.5	4.9	5.9	7.4	8.2	10
9		Inrush current, maximum current			A	3.7, 14	4.7, 14	5, 15	5, 15	5, 20	5, 20	5, 21
10		EER		Cooling T1		5	4.69	4.9	4.55	5	4.71	3.7
11		COP		Heating H1		5.42	5	5.17	4.86	4.91	4.77	4.41
12		Sound power level (JIS C9612)		Cooling T1	dB(A)	62	63	62	62	63	66	67
13		Sound power level (JIS C9612)		Heating H1	dB(A)	64	65	64	64	67	67	72
14		Sound pressure level (JIS C9612)		Cooling T1	dB(A)	49	50	49	50	50	54	54
15		Sound pressure level (JIS C9612)		Heating H1	dB(A)	51	52	52	52	54	54	59
16		Silent mode		Cooling T1	dB(A)	44	44	43	43	45	46	49
17		Silent mode		Heating H1	dB(A)	46	46	44	44	50	50	50
18	External dimensions (HxWxD)				mm	595x780(+90)x290	595x780(+90)x290	640x850(+65)x290	640x850(+65)x290	750x880(+73)x340	750x880(+73)x340	945 x 970 x 370
19	Net weight				kg	40	40	48.5	48.5	61	61	73
20	Refrigerant (R32)			Quantity	kg	1.4	1.4	1.8	1.8	2.55	2.55	2.98
21	Refrigerant (R32)			Pre charged to pipe length	m	20	20	40	40	30	30	40
22	Installation data	Refrigerant piping		Liquid line	mm	Ø6.35 x 2	Ø6.35 x 2	Ø6.35 x 3	Ø6.35 x 3	Ø6.35 x 4	Ø6.35 x 4	Ø6.35 x 5
23		Refrigerant piping		Gas line	mm	Ø9.52 x 2	Ø9.52 x 2	Ø9.52 x 3	Ø9.52 x 3	Ø9.52 x 4	Ø9.52 x 4	Ø9.52 x 5
24		Connection method				Flare connection
25		Maximum pipe length to one indoor unit			m	25	25	25	25	25	25	25
26		Total pipe length to all indoor units			m	30	30	40	40	70	70	75
27		Max vertical height diff. between O.U. and I.U.			m	15 ( O.U. above I.U.) / 15 ( O.U. below I.U. )				20 ( O.U. above I.U.) / 20 ( O.U. below I.U. )
28	Indoor Unit Combination			SRK-ZSA-W	kW	2.0, 2.5, 3.5	2.0, 2.5, 3.5	2.0, 2.5, 3.5, 5.0	2.0, 2.5, 3.5, 5.0	2.0, 2.5, 3.5, 5.0	2.0, 2.5, 3.5, 5.0	2.0, 2.5, 3.5, 5.0
29				SRK-ZSXA-W		2.0, 2.5, 3.5	2.0, 2.5, 3.5	2.0, 2.5, 3.5, 5.0	2.0, 2.5, 3.5, 5.0, 6.0	2.0, 2.5, 3.5, 5.0, 6.0	2.0, 2.5, 3.5, 5.0, 6.0	2.0, 2.5, 3.5, 5.0, 6.0
30				SRK-ZRA-W						7.1	7.1	7.1, 8.0
31				SRF-ZS(X)-W		2.5, 3.5	2.5, 3.5	2.5, 3.5, 5.0	2.5, 3.5, 5.0	2.5, 3.5, 5.0	2.5, 3.5, 5.0	2.5, 3.5, 5.0
32				SRR-ZS-W		2.5, 3.5	2.5, 3.5	2.5, 3.5, 5.0	2.5, 3.5, 5.0, 6.0	2.5, 3.5, 5.0, 6.0	2.5, 3.5, 5.0, 6.0	2.5, 3.5, 5.0, 6.0
33				FDTC-VH		2.5, 3.5	2.5, 3.5	2.5, 3.5, 5.0	2.5, 3.5, 5.0, 6.0	2.5, 3.5, 5.0, 6.0	2.5, 3.5, 5.0, 6.0	2.5, 3.5, 5.0, 6.0
34				FDUM-VH				5	5	5	5	5
35	Indoor Unit Connection					2 Units	2 Units	2 to 3 Units	2 to 3 Units	2 to 4 Units	2 to 4 Units	**3 to 5 Units
36	Indoor Connection Capacity				kW	4.0 to 6.0	4.5 to 7.0	5.0 to 8.5	6.0 to 11.0	7.0 to 12.5	8.0 to 13.5	9.0 to 16.0
37	Outdoor air temperature (upper, lower limits)			Cooling	C	-15 to 46
38	Outdoor air temperature (upper, lower limits)			Heating	C	-15 to 24
39	* Operation data has been gathered in accordance with AS/NZS 3823 standards. ^In case of the outdoor unit is positioned higher, the dimensional limitation change from 30m to 50m is possible by changing SW5-2 of outdoor unit Control PCB to ON.
40	** This model normally requires a minimum of 3 indoor units. Combination of 2 indoor units in some circumstances would be permitted. Please refer to the “Combination Limitations” table in the technical manuals for the detailed connection information.
41	For full compatibility options, please click here to view our brochure

Case Studies

ApartmentsEducationResidential

University of Melbourne - Dookie Campus

Completed: March 2024

Products Used:

1x Q-ton Hot Water Heat Pump
4x SCM-ZS-W series
2x Avanti® Series

2x Bronte® Series

View Case Study

Apartments

Dorset Street Apartments

Completed: April 2018

Products Used:

14x SCM-ZS-W series
56x AKARI® Series

View Case Study

Request a Quote

Leave some details and we'll get an installer to get in touch!
