FDTC Series

With a compact design, quiet operation and Draught Control Technology, the FDTC series of compact ceiling cassettes offer the perfect solution for a range of commercial applications. At only 258mm high, the FDTC series is one of the most compact ceiling cassettes on the market, allowing for easy installation in spaces with minimal roof space. Optional motion sensor offers an energy saving solution by monitoring activity in the room and automatically switching to energy-saving mode at times of low activity. Fascia panel available in both honeycomb and grid design – see brochure for more info.

POWER: Single Phase | AVAILABLE IN: Reverse Cycle

CAPACITIES: 2.5kW | 3.5kW | 5.0kW | 5.6kW

Key features

Compact design
DRAUGHT CONTROL TECHNOLOGY TO DELIVER EFFICIENT AIRFLOW AND PREVENT DRAUGHTS
VARIOUS TIMER FUNCTIONS FOR CONVENIENCE
OPTIONAL MOTION SENSOR FOR INCREASED ENERGY SAVING
600mm built-in drain pump

SELECT A CAPACITY TO VIEW SPECIFICATIONS

Single Phase

Specifications

SELECTED MODEL: SRK20ZSA-W / DXK06ZSA-W

Capacity

COOLING:

HEATING:

Energy Labels

Hot

COOLING:

HEATING:

Average

COOLING:

HEATING:

Cold

COOLING:

HEATING:

Dimensions (HxWxD)

INDOOR:

OUTDOOR:

FEATURES
CONTROL OPTIONS
DOWNLOADS

Energy Saving

Home Leave Operation

Maintains a moderate indoor temperature, avoiding extremely hot or cool temperatures. Suitable for when rooms are unoccupied for long periods of time.

Set Temperature Auto Return

Program a preferred set temperature that the unit will return to each time it is switched on. Requires RC-EXZ3A wired controller.

Comfort & Convenience

Automatic Operation

Automatically selects the required heating or cooling function based on the current room conditions and set temperature.

Function Switch

Set two functions to operate automatically. Requires RC-EXZ3A wired controller and no other central controller to be connected.

Peak-Cut Timer

Set the capacity limit during peak billing times, minimising energy consumption and reducing running costs. Requires RC-EXZ3A wired controller.

Hi Power Operation

Provides 15mins of boosted power to quickly heat or cool your home before returning to normal operation. Perfect for when you first turn on it the unit.

Silent Operation

Set periods of time where the unit will operate with reduced noise levels, perfect for night time and an uninterrupted sleep.

Weekly Timer

Set your unit to turn on and off at specific times for each day of the week to suit your needs.

Sleep Timer

Set a pre-determined amount of time between 30 and 240 mins that your unit will operate for before switching off.

Air Flow

Louvre Control System

Set the upper and lower limit positions of each individual louvre, providing you with complete control over internal airflow.

Vertical Auto Swing

Set the louvres to move up and down continuously or set the louvre positions to single position.

Air Filter

Traps and removes air borne dust particles and other allergens, providing you with clean air throughout your home.

Filter Sign

Alerts you to when the filter needs to be cleaned.

Outside Air Intake

Allocated outside air inlet connection available on indoor unit to provide fresh air into the room, avoiding the constant recycling of internal air. Requires separate outside air duct to be connected to indoor unit.

Automatic Fan Speed

The unit’s on-board microcomputer continuously monitors the room’s air temperature and adjusts the fan speed accordingly.

Maintenance

Built-in Drain Pump

The built-in drain pump allows greater flexibility with installation, offering a perfect solution for applications with limited space.

Self-Diagnostics

In the unlikely event of a fault the internal microcomputer automatically runs a diagnostic of the system. This enables a service agent to quickly isolate and repair any issues.

SELECT CONTROLLER TYPE FOR DETAILS:

RC-EXZ3A

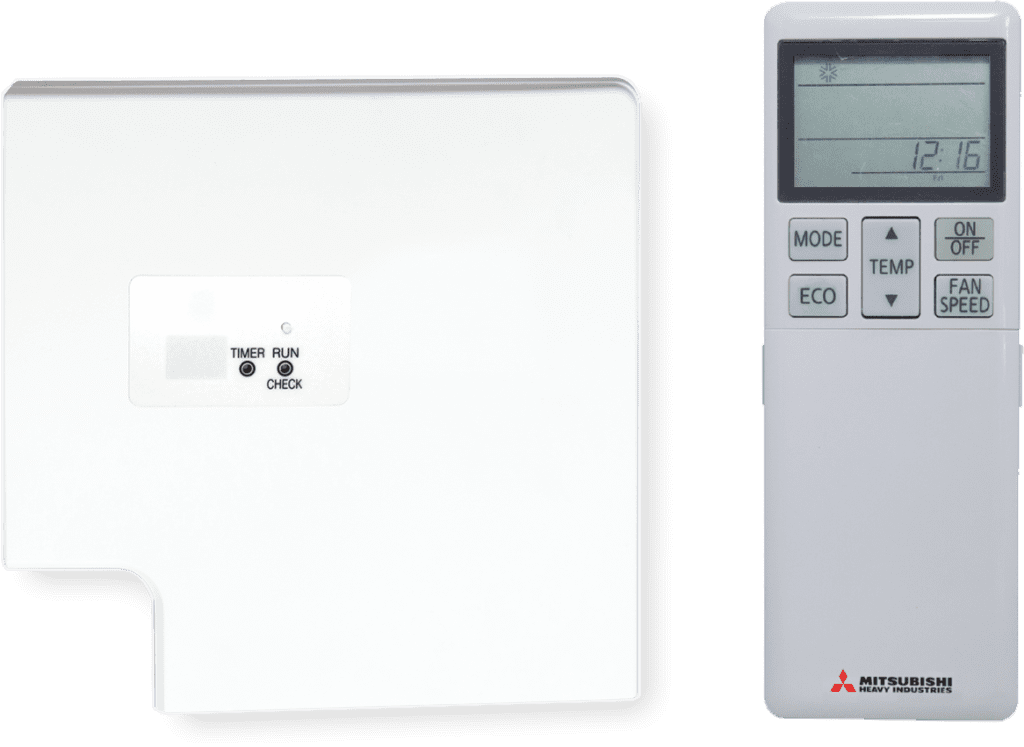

RCN-TC-5AW-E2 / RCN-TC-5AW-E3

RCH-E3

RC-E5

Wi-Fi

High Power Mode

Provides 15mins of boosted power allowing you to quickly heat or cool your home.

Silent Operation

Set periods of time where the unit will operate with even further reduced noise levels.

Individual Louvre Control

Set the upper and lower limit positions of the louvre at each air outlet individually.

Sleep Timer

Set a pre-determined amount of time that your unit will operate for before switching off.

Weekly Timer

Set your unit to turn on and off up to 4 times each day of the week.

Peak Cut Timer

Set capacity limit of the system, minimising energy consumption during peak billing times.

Download Manual

High Power Mode

Provides 15mins of boosted power allowing you to quickly heat or cool your home.

Louvre Control System

Set the upper and lower limit positions of the louvre at each air outlet individually.

Economy Mode

Reduces power consumption while maintaining a comfortable room temperature.

On/Off Timer

Set your unit to turn on and off once within a 24 hour period.

Child Lock

Disables the controller and prevents inadvertent changes to the control settings.

Night Setback

Maintains room temperature during cold conditions, even when the room is unattended.

For more information on the functions available and how to access them on your remote control, please refer to your unit’s user manual.

Download Manual

With the ability to control up to 16 indoor units, RCH-E3 is intended for use in a setting where everyday users only need access to the basic functions.
With the RCH-E3 users can turn the air conditioner ON/OFF and control the mode, temperature and fan speed settings.

Note: Simple remote control is not applicable to the individual flap control system nor Draught Control Technology. When this remote is used the fan has 3 speed settings (Hi-Me-Lo) only.

Download Manual

Users can set the direction of each individual louver for desired air flow direction.
Enables extensive access to service and maintenance technical data combined with easy to use functions and a clear LCD display.
Weekly Timer function is a standard inclusion. This allows users to set up to 28 different timers, on and off operations, in a week with 4 timer programs per day available.
The temperature of the room is controlled by the remote control sensor.
Easily enable silent operation which allows you to program periods of operation at lower noise levels, ideal for temperature control during the night.

Download Manual

Control your system using your smart device (iPhone, iPad) or internet browser via to easy to use AC Cloud Control app*.

Control the set temperature, operation mode and fan speed.
Control your system via your Google or Amazon smart speaker device.
Control your system using Voice Commands.
Set up ‘favourite’ scenes and activate them with a single tap.
Set your system to respond to the weather, you arriving home, calendar events + more**.
Receive instant notifications and email updates and create usage logs**.

*Wi-Fi control requires MH-RC-WIFI-1B Wi-Fi adaptor (sold separately)
**In conjunction with IFTTT and other apps (must be downloaded separately).

Note: Some functions for some air conditioners may not be available via AC Cloud Control app. On/Off timer, weekly timer and sleep timer are disabled if Wi-Fi accessory connected. Similar functions can be set via the AC Cloud application.

Download Manual

Ceiling Systems Brochure

User Manual FDTC Wireless Control (RCN-TC-24W-ER)

User Manual RC-E5 Controller (FDCA, FDUA, FDUM, FDT, FDTC, FDE Series)

User Manual RCH-E3 Controller (FDUA, FDUM, FDCA, FDT, FDTC, FDE Series)

User Manual Wi-Fi Control (MH-RC-WIFI-1B) FDCA, FDUA, FDUM, FDT, FDTC, FDE SERIES

Ultimate Customer Satisfaction

Backed by award-winning technology, effortless performance, and unparalleled product reliability, we are dedicated to ensuring your complete satisfaction at every touchpoint.

Reliability

Designed to perform in the most demanding environments on earth, we engineer our products to endure its harshest conditions, from scorching summers, ice-cold winters and everything in-between.

Superior Technology

With world-class engineering and product innovation in our DNA, we push the boundaries to develop technology that delivers optimal experience. You can depend on us to deliver comfort in your home year after year.

Commitment to Our Customers

Standing behind the quality of our products is our commitment to our customers and after sales service guarantees with comprehensive warranties providing you peace of mind.

TECHNICAL SPECIFICATIONS

	A	B	D	E	F	G	H	I
1	Set				FDTC25ZSAWVH1	FDTC35ZSAWVH1	FDTC50ZSXAWVH	FDTC60ZSXAWVH
2	Indoor				FDTC25VH1	FDTC35VH1	FDTC50VH	FDTC60VH
3	Outdoor				SRC25ZSA-W	SRC35ZSA-W	SRC50ZSXA-W	SRC60ZSXA-W
4	Power source (Outdoor Unit)				1 Phase 240V 50Hz
5	*Operation data	Nominal Capacity (Range)	Cooling T1	kW	2.5 (0.9-3.5)	3.5 (0.9-4.3)	5.0 (1.1 -5.6)	5.6 (1.1-6.3)
6			Heating H1		3.4 (0.9-4.6)	4.25 (0.9-4.6)	5.4 (0.6-6.3)	6.7 (0.6-6.7)
7			Heating H2		3.45	3.95	4.8	5.8
8		Power consumption	Cooling T1	kW	0.54 (0.18-0.89)	0.91 (0.18-1.37)	1.4	1.73
9		Power consumption	Heating H1	kW	0.77 (0.18-1.36)	1.08 (0.19 -1.33)	1.53	2.14
10		Maximum power consumption		kW	1.65	1.65	2.9	2.9
11		Running current	Cooling T1	A	2.7	4.1	6.2	7.6
12		Running current	Heating H1	A	3.6	4.8	6.7	9.4
13		Inrush current, maximum current		A	3.6, 9	4.8, 9	5, 15	5, 15
14		EER	Cooling T1		4.63	3.85	3.58	3.23
15		COP	Heating H1		4.42	3.94	3.53	3.13
16		Sound power level (JIS C9612)	Outdoor	dB(A)	59	62	63	65
17		Sound pressure level (JIS C9612)	Indoor	dB (A)	P-Hi:38 Hi:34 Me:30 Lo:27	P-Hi:39 Hi:36 Me:32 Lo:29	P-Hi:44 Hi:40 Me:35 Lo:27	P-Hi:46 Hi:42 Me:38 Lo:31
18		Sound pressure level (JIS C9612)	Outdoor	dB (A)	47	50	52	54
19	External dimensions (HxWxD)		Indoor	mm	248x570x570	248x570x570	248x570x570	248x570x570
20			Panel		10X620X620 TC-PSAE-5AW-E (Honeycomb) / TC-PSAGE-5AW-E (Grid)
21			Outdoor		540x780(+62)x290	540x780(+62)x290	640x800(+71)x290	640x800(+71)x290
22	Net weight		Indoor	kg	Unit 13.5 Panel 2.5	Unit 13.5 Panel 2.5	Unit 14 Panel 2.5	Unit 14 Panel 2.5
23	Net weight		Outdoor	kg	34.5	34.5	45	45
24	Airflow		Indoor (Cooling)	l/s	P-Hi: 142Hi: 125 Me: 117 Lo: 100	P-Hi: 150 Hi: 133 Me: 125 Lo: 108	P-Hi: 217 Hi: 183 Me: 150 Lo: 117	P-Hi: 233 Hi: 200 Me: 167 Lo: 133
25	Airflow		Indoor (Heating)	l/s	P-Hi: 175 Hi: 142 Me: 125 Lo: 108	P-Hi: 183 Hi: 150 Me: 133 Lo: 117	P-Hi: 217 Hi: 183 Me: 150 Lo: 117	P-Hi: 233 Hi: 200 Me: 167 Lo: 133
26	Refrigerant (R32)		Quantity	kg	(R32) 0.78	(R32) 0.78	(R32) 1.3	(R32) 1.3
27	Refrigerant (R32)		Pre charged to pipe length	m	15	15	15	15
28	Installation data	Refrigerant piping	Liquid line	mm	Ø6.35	Ø6.35	Ø6.35	Ø6.35
29		Refrigerant piping	Gas line	mm	Ø9.52	Ø9.52	Ø12.7	Ø12.7
30		Connection method			Flare connection
31		Maximum pipe (one way) length		m	20	20	30	30
32		Max vertical height diff. between O.U. and I.U.		m	10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. )		20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )
33	Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-TC-5AW-E2 / RCN-TC-5AW-E3 (Fine snow)
34	Motion Sensor (Optional)				LB-TC-5W-E
35	Demand response (AS4755)				Yes	Yes	Yes	Yes
36	Outdoor air temperature (upper, lower limits)		Cooling	C	-15 to +46	-15 to +46	-15 to +46	-15 to +46
37	Outdoor air temperature (upper, lower limits)		Heating	C	-15 to +24	-15 to +24	-20 to +20	-20 to +20
38	* Operation data has been gathered in accordance with AS/NZS 3823 standards.
